Mikrotik RB SXTG-5HPnD-SAr2

RBSXTG-5HPnD-SAr2

OVERVIEW

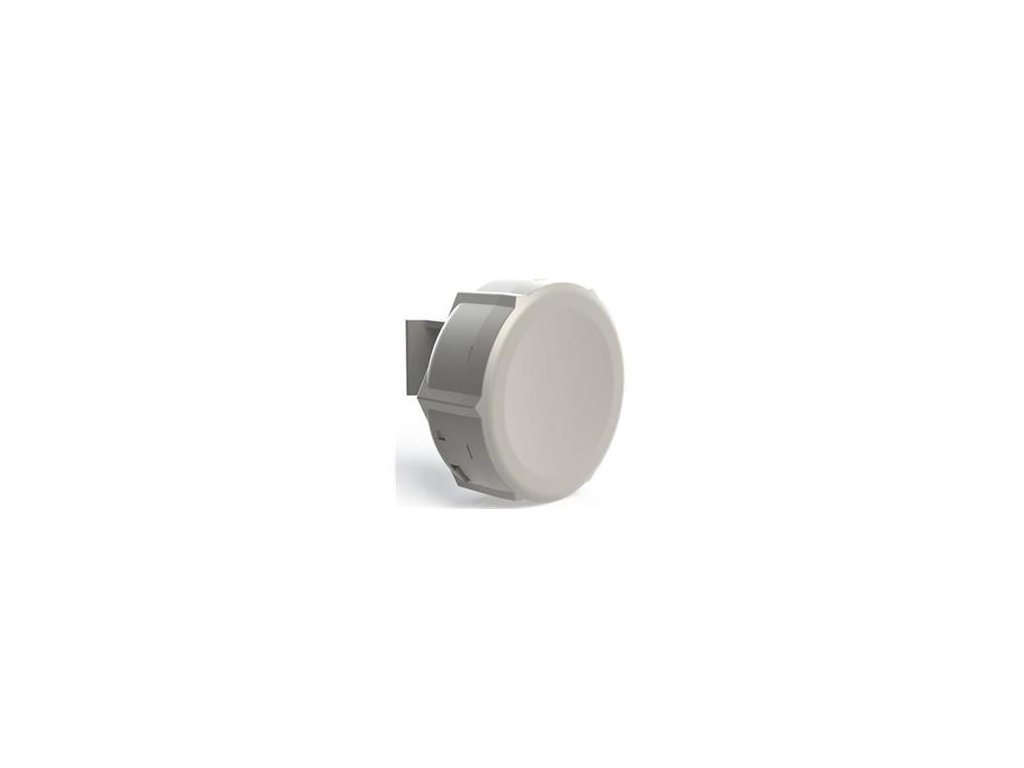

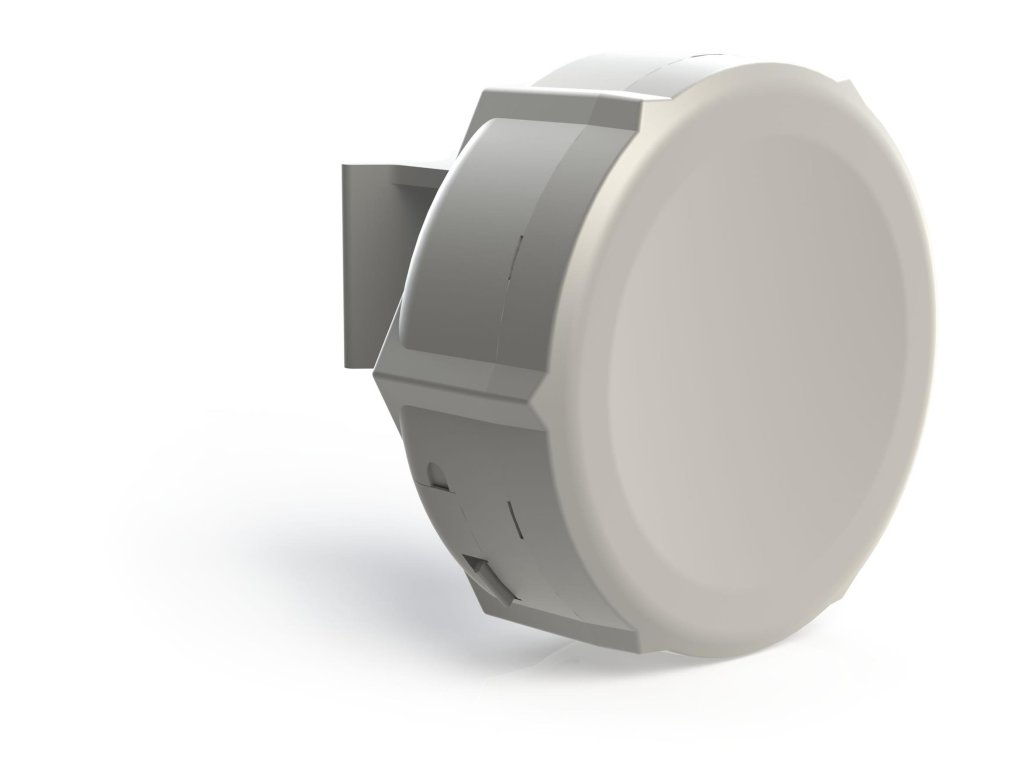

SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a 90 degree antenna to provide a wider coverage than our previous SXT units.

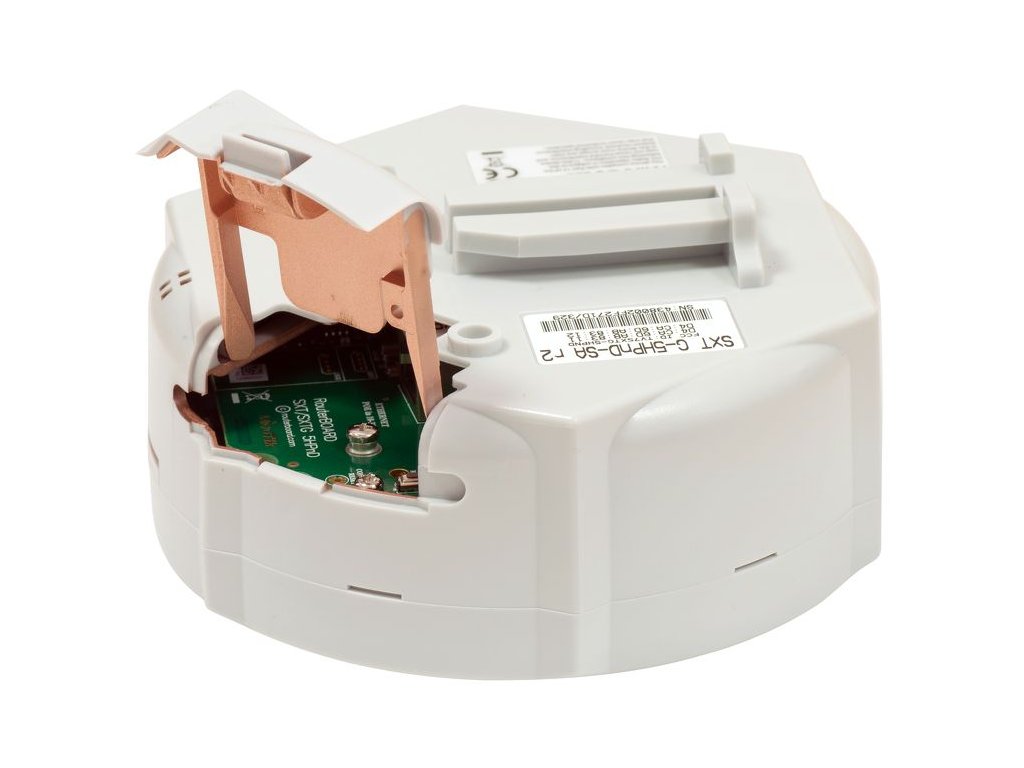

Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes. The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio.

Box contains: SXT wireless device with integrated antenna, pole mounting bracket, mounting ring, PoE injector, power adapter, quick setup guide.

SPECIFICATIONS
Product code
• RBSXTG-5HPnD-SAr2

CPU speed
• 600MHz

CPU cores
• 1

RAM
• 64

LAN ports
• 1

Gigabit
• Yes

MiniPCI
• 0

Integrated Wireless
• Yes

Wireless standards
• 802.11an

USB
• yes

802.3af support
• No

PoE
• 8-30V DC

Voltage Monitor
• Yes

PCB temperature monitor
• Yes

CPU temperature monitor
• No

Dimensions
• 140x140x56mm

Operating Systém
• RouterOS

Temperature range
• -30C .. +80C

RouterOS License
• L4

Antenna gain
• 14dBi

Current Monitor
• No

TX power
• 30dBm

Max Power consumption
• Up to 7W

SFP ports
• No
