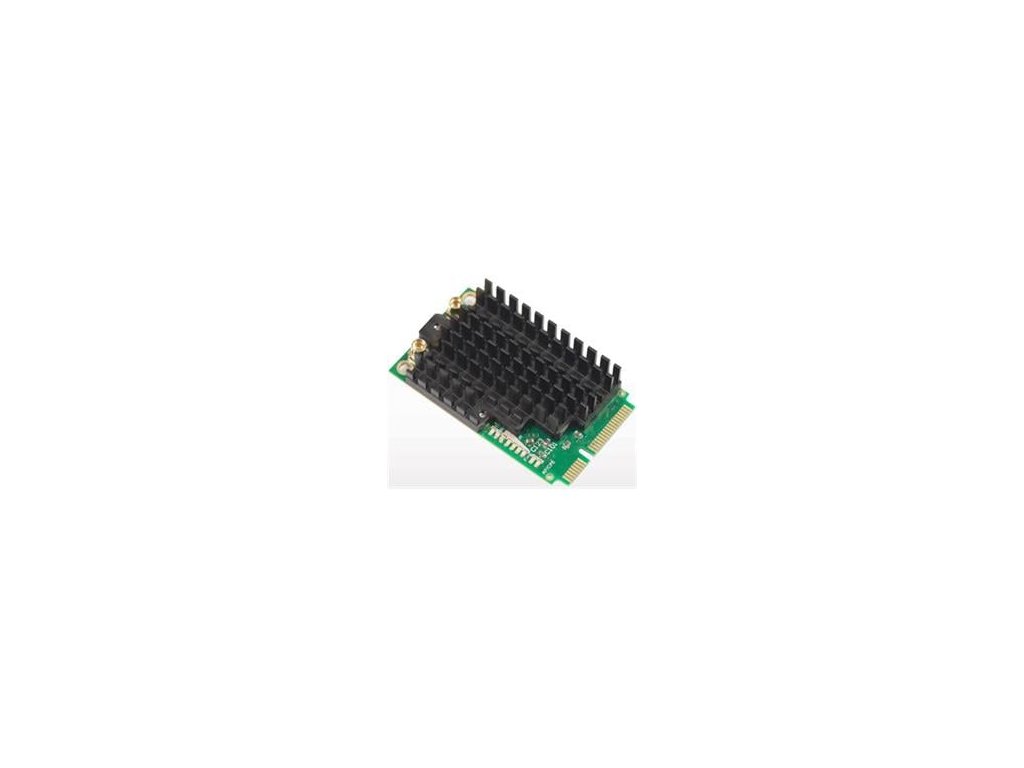

MikroTik R11e-5HnD
OVERVIEW
High power wireless cards in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
SPECIFICATIONS
Chipset
• AR9580
Frequency range
• 4920-5920MHz
Standards
• 802.11a/n
Max output power
• 1000mW
Format
• miniPCIe
Dimensions
• 51x30x13mm
Connectors
• 2x MMCX
Features
• 9 LED indicators, ESD protection
Temperature
• Starting -5C to +65C;
• Operating -30C to +65C
MAX power consumption
• 5W
TX/RX at MCS0
• 30dBm / -96dBm
TX/RX at MCS7
• 24dBm / -76dBm
TX/RX at 6Mbit
• 30dBm / -96dBm
TX/RX at 54Mbit
• 24dBm / -76dBm
OVERVIEW
High power wireless cards in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
SPECIFICATIONS
Chipset
• AR9580
Frequency range
• 4920-5920MHz
Standards
• 802.11a/n
Max output power
• 1000mW
Format
• miniPCIe
Dimensions
• 51x30x13mm
Connectors
• 2x MMCX
Features
• 9 LED indicators, ESD protection
Temperature
• Starting -5C to +65C;
• Operating -30C to +65C
MAX power consumption
• 5W
TX/RX at MCS0
• 30dBm / -96dBm
TX/RX at MCS7
• 24dBm / -76dBm
TX/RX at 6Mbit
• 30dBm / -96dBm
TX/RX at 54Mbit
• 24dBm / -76dBm
Doplňkové parametry
| Kategorie: | RouterBOARD |
|---|---|
| Záruka: | 24 měsíců |
| Hmotnost: | 1 kg |
| EAN: | 4752224002617 |
| MPN: | R11e-5HnD |
