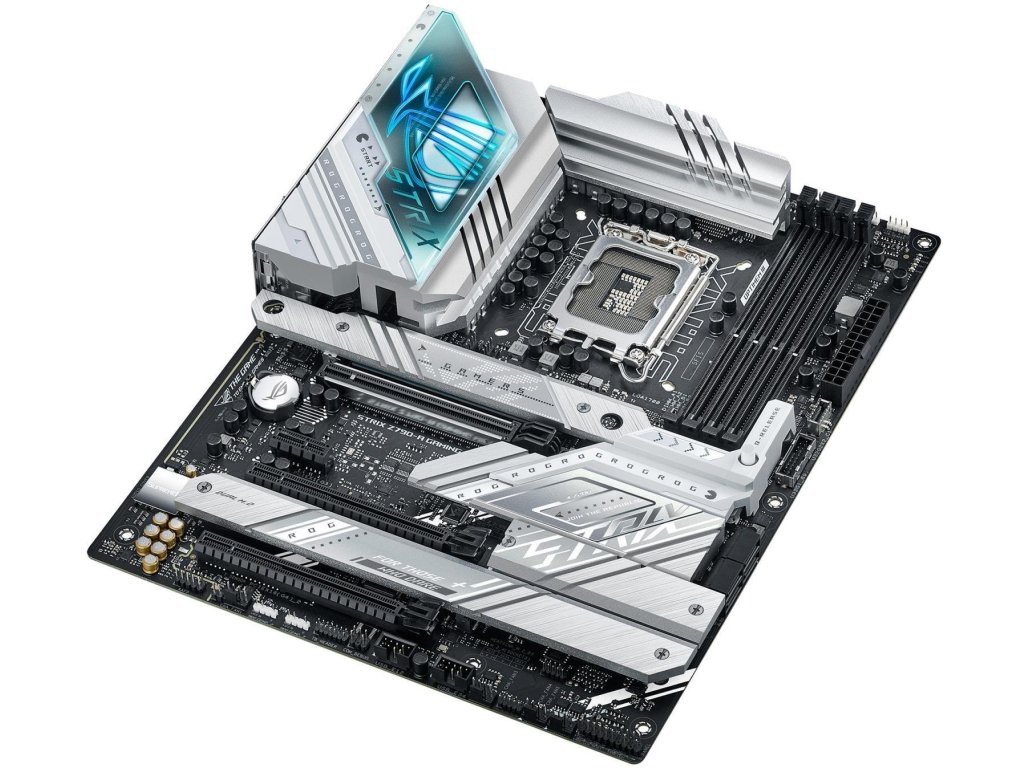

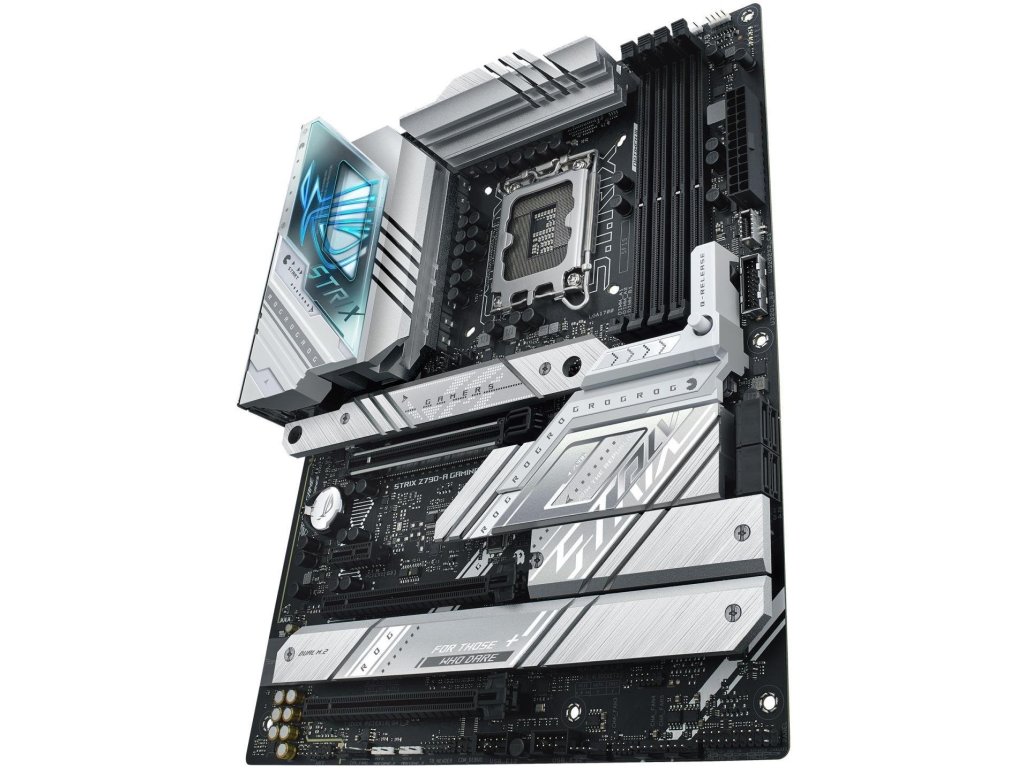

ASUS ROG Strix Z790-A GAMING WIFI D4

Chipset: Intel Z790

Rozměrový formát: ATX
Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Pozice na paměti: 4 x DIMM
Podpora pro paměti:

4 x DIMM
Max. 128GB
DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem III

Max. velikost operační paměti: 128 GB

Grafická karta: ne (1x DisplayPort + 1x HDMI port)

Zvuková karta:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Síťová karta:

1 x Intel 2.5Gb Ethernet
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

Rozšiřujicí sloty:
Intel 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel Z790 Chipset

2 x PCIe 4.0 x16 slots (support x4/x4 mode)
1 x PCIe 3.0 x1 slot

RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

SATA:

4 x SATA 6Gb/s ports

M.2:
Intel 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

USB: zadní USB - celkem 10, přední USB - celkem 7
ZADNÍ

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

PŘEDNÍ

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports 4 additional USB 2.0 ports

Interní porty:
Fan and Cooling related

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage related

4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header

Externí porty:

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
