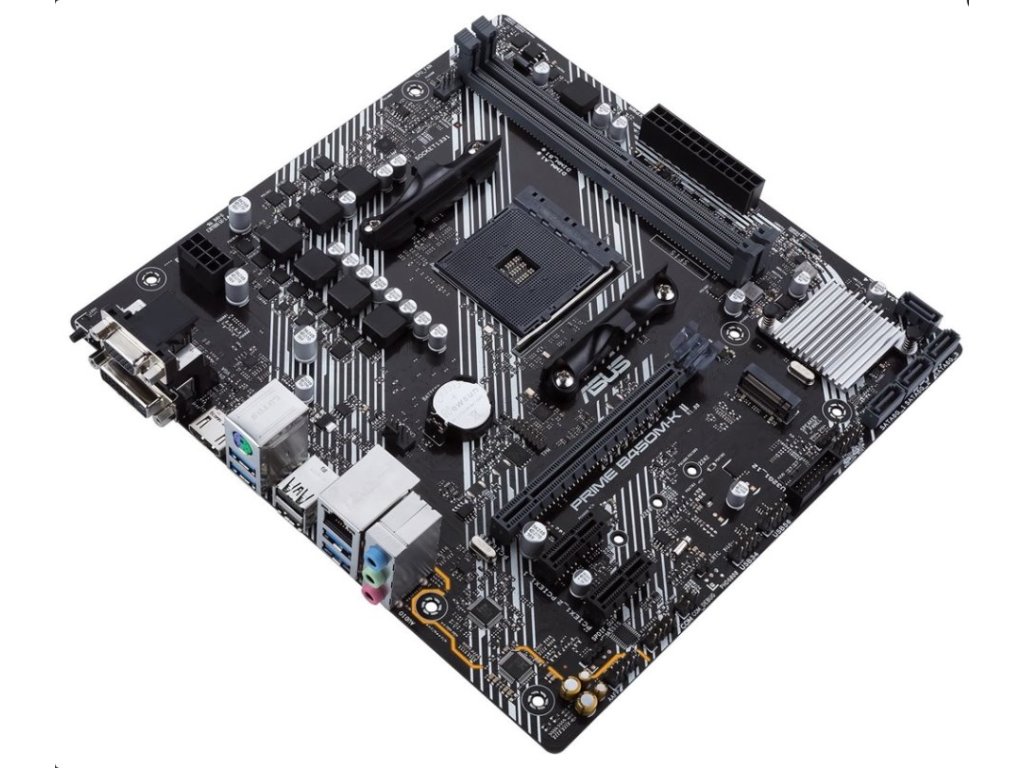

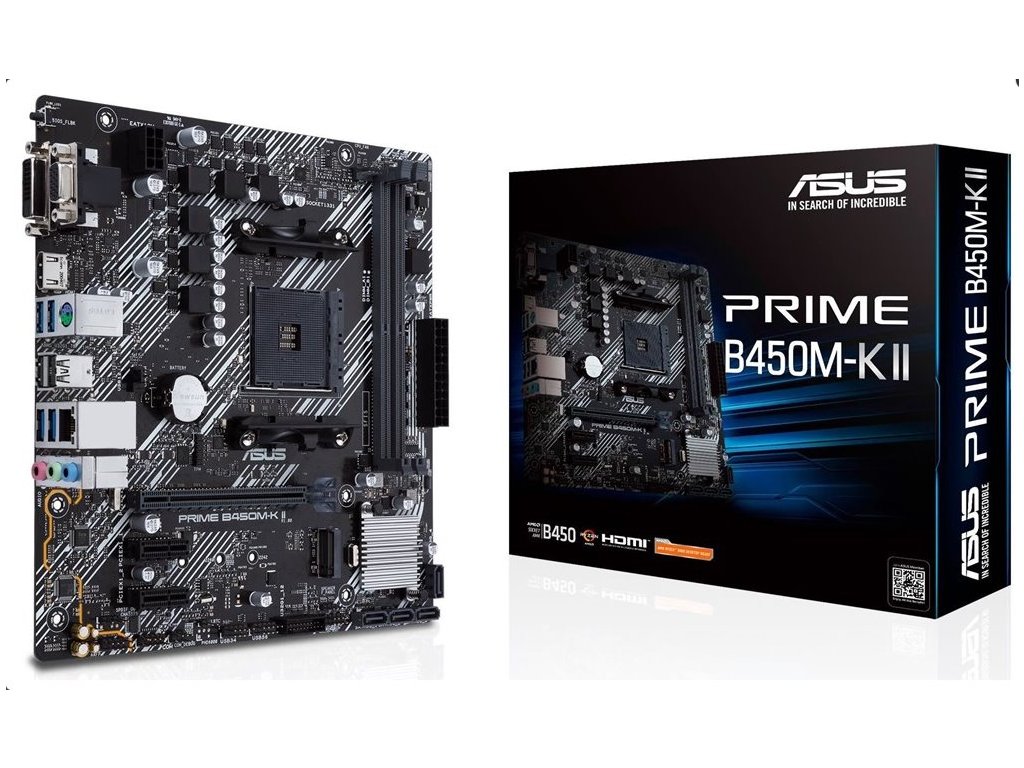

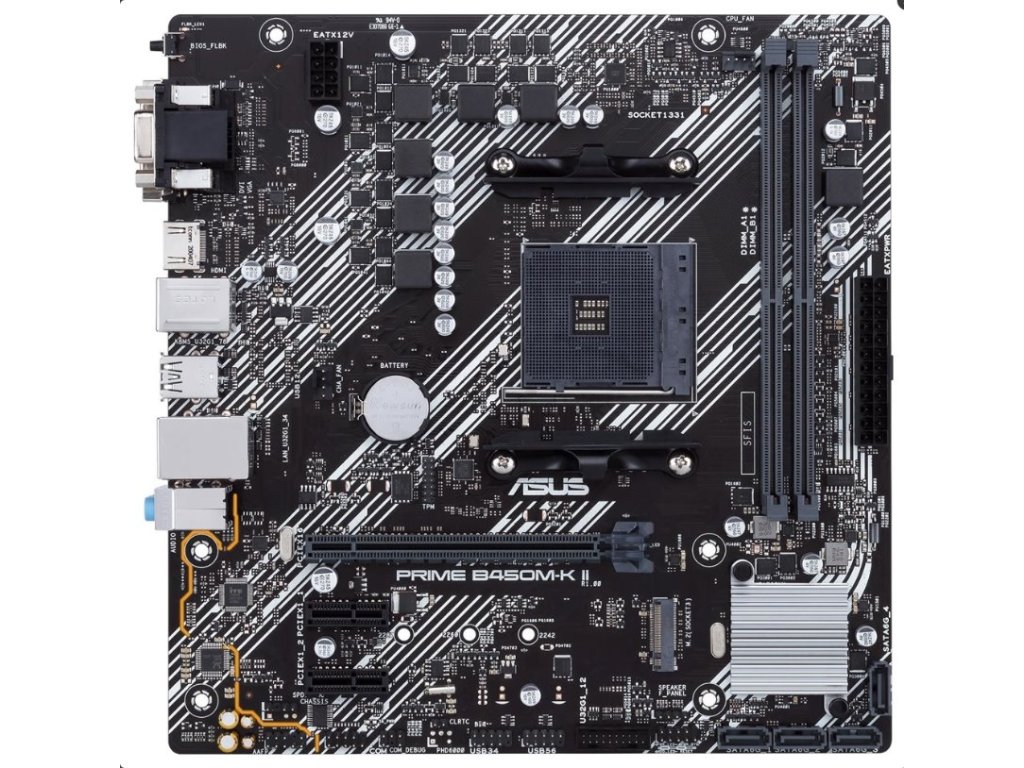

ASUS Prime B450M-K II

Chipset: AMD B450 Rozměrový formát: mATX Form Factor (226 mm x 221 mm) Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors Patice procesoru: AM4 Pozice na paměti: 2x DDR4 DIMM Podpora pro paměti: 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU Grafické výstupy: Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics/Athlon) Zvuková karta: Realtek 7.1-Channel High Definition Audio CODEC Síťová karta: Realtek® RTL8111H Rozšiřující sloty: 3rd/2nd/1st Gen AMD Ryzen™ Processors 1x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1x PCIe 3.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 2x PCIe 2.0 x1 RAID řadič: 0, 1, 10 SATA: 4x SATA 6Gb/s ports M.2: 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: zadní USB porty ( celkem 6 ) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) 2x USB 2.0 port(s)(2 x Type-A) přední USB porty ( celkem 6 ) 2x USB 3.2 Gen 1 port(s) 4x USB 2.0 port(s) Interní porty: 1x CPU Fan connector(s) (1 x 4 -pin) 1x Chassis Fan connector(s) (1 x 4 -pin) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x SPI TPM header 1x COM port(s) connector(s) 4x SATA 6Gb/s connector(s) 1x S/PDIF out header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin ATX 12V Power connector(s) 1x Front panel audio connector(s) (AAFP) 1x System panel(s) 1x Clear CMOS jumper(s) 1x COM port header 1x Speaker connector Externí porty: 1x PS/2 keyboard/mouse combo port(s) 1x DVI-D 1x D-Sub 1x HDMI 1x LAN (RJ45) port(s) 4x USB 3.2 Gen 1 (blue) Type-A 2x USB 2.0 3x Audio jack(s) 1x BIOS FlashBack™ Button(s) Obsah balení: User's manual I/O Shield 2x SATA 6Gb/s cable(s) 1x M.2 Anchor 1x Supporting DVD BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
