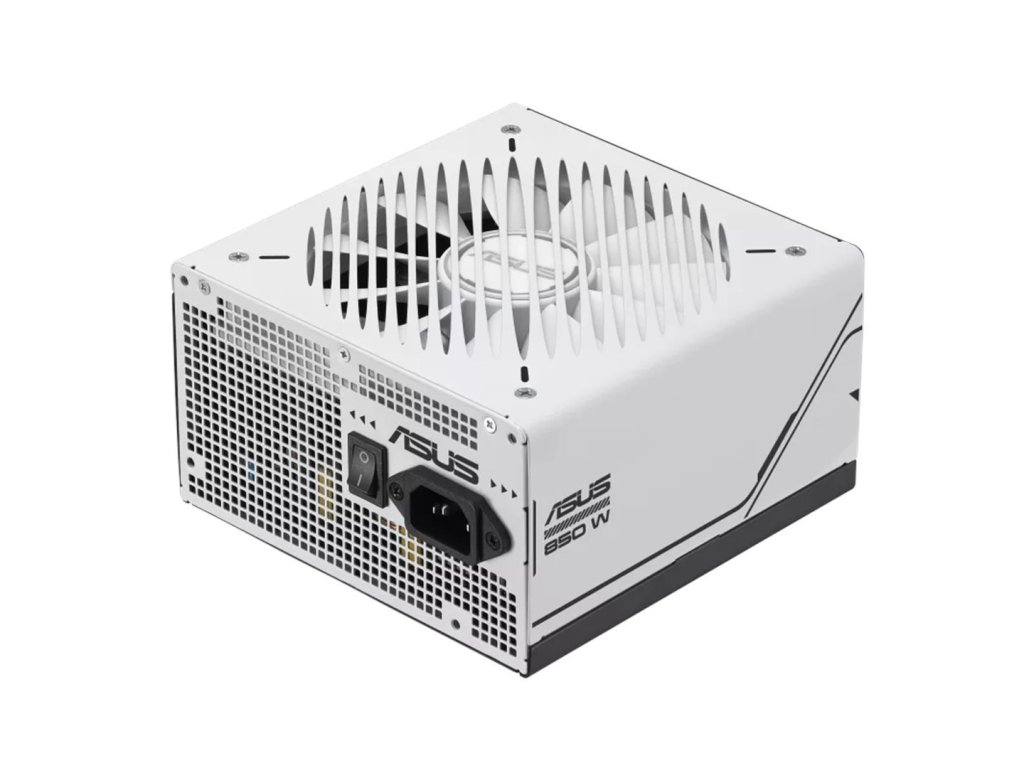

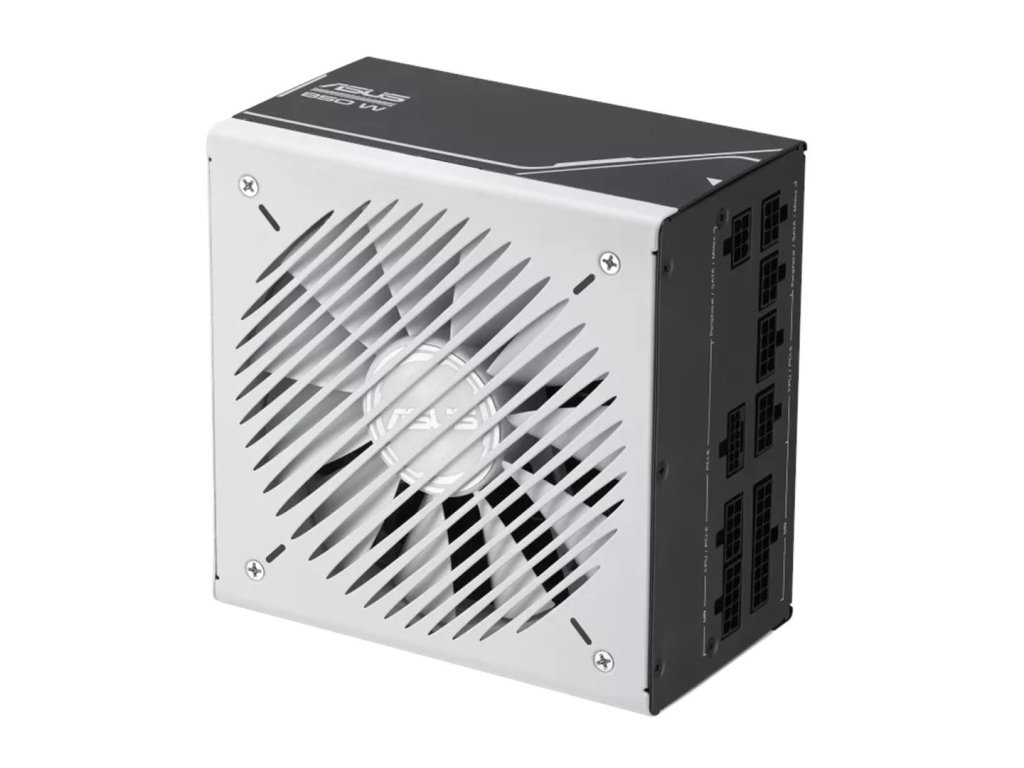

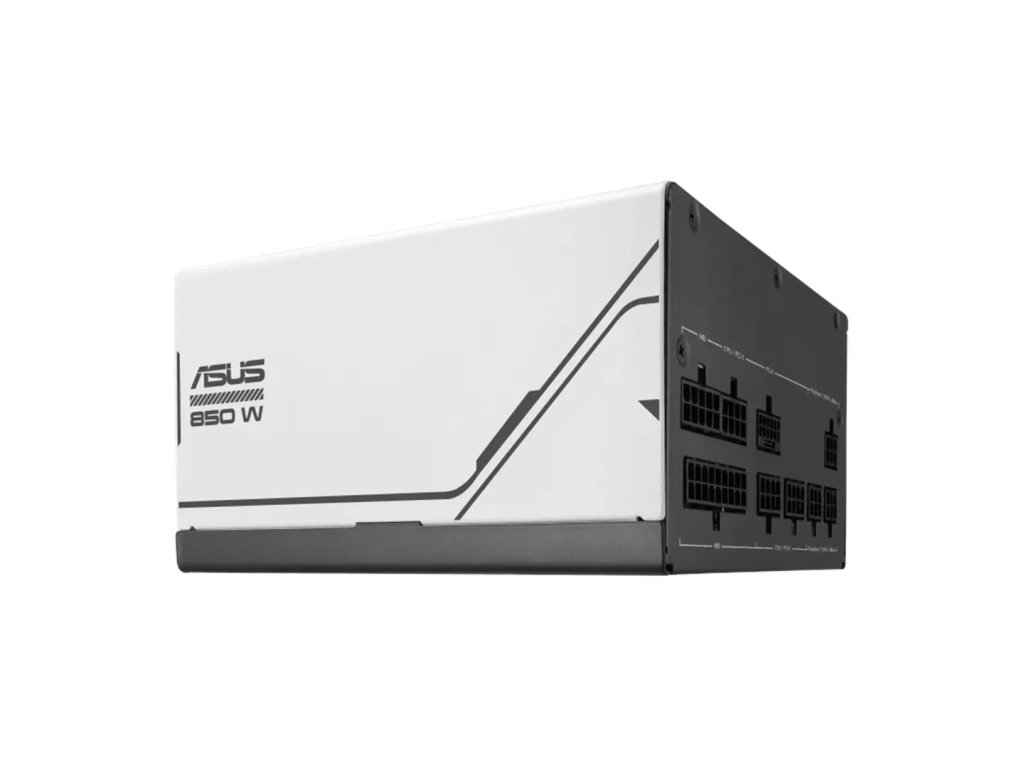

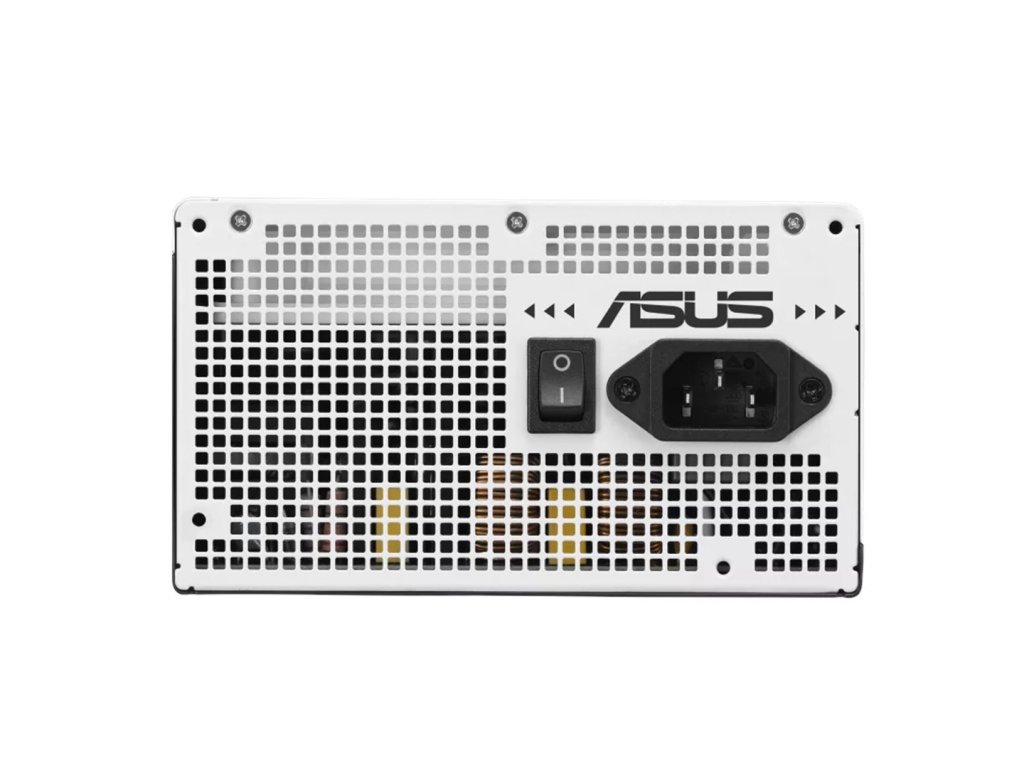

ASUS Prime AP-850G 850W

ASUS Prime AP-850G Gold

Intel Form Factor: ATX12V
PFC Typ: aktivní
ATX Standard: ATX 3.1

Rozměry: 150 x 150 x 86 mm

Účinnost: 80Plus Gold
MTBF: >120,000 hrs @ 25°C

Ochrana: OPP/OVP/UVP/SCP/OCP/OTP
AC vstupní rozsah: 100-240Vac
Výstupní napětí DC: +3.3V +5V +12V -12V +5Vsb
Maximální zatížení: 20A20A70.5A 0.3A 2.5A
Kombinované zatížení: 110W 110W 846W 3.6W 12.5W

Celkový výkon: 850W

Konektory:
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3

Balení obsahuje:

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1
